Zenmuse X5S





Zenmuse X5S

LONG-RANGE CAMERA AND FOCUS CONTROL
Take control over every camera setting from afar, including focus, aperture, and format, directly in the DJI GO app. Precision control also extends to focus, with DJI GO and the optional DJI Focus, offering focus control across the entire transmission range. Using DJI Focus, no additional cables or motors are needed and new Lightbridge technology sends all signals as far as 4.3mi (7km) away*.

* Unobstructed, free of interference, when FCC compliant.

Zenmuse X5S

INSPIRE 2 AERIAL IMAGING
Compared with the Inspire 1, the Inspire 2 utilizes an innovative structure that separates the CineCore 2.0 image processing system from the camera and places it inside the aircraft. This means that the sensor and optical system are detachable and easily connected using a newly designed quick-release connector. Designing the camera system in this way effectively protects the sensor from magnetic interference originating from the processor. It also allows a range of lightweight camera units to be connected as required by different scenes. The uprated M4/3 sensor — and support for interchangeable lenses — allows the Zenmuse X5S to capture high resolution images of incredibly high quality, when combined with the extraordinary CineCore 2.0 image processing system.

Zenmuse X5S - Micro 4/3 Sensor

IMPROVED MICRO 4/3 SENSOR
The onboard Micro 4/3 sensor has been upgraded, significantly improving image quality. With a pixel size of 3.4μm, this 20.8-megapixel sensor captures more detail than the previous sensor. It has 12.8 stops of dynamic range as well as a better signal to noise ratio and color sensitivity than the X5R, allowing it to create clear, low noise images in low light environments.

 Zenmuse X5S - Compatible Lenses

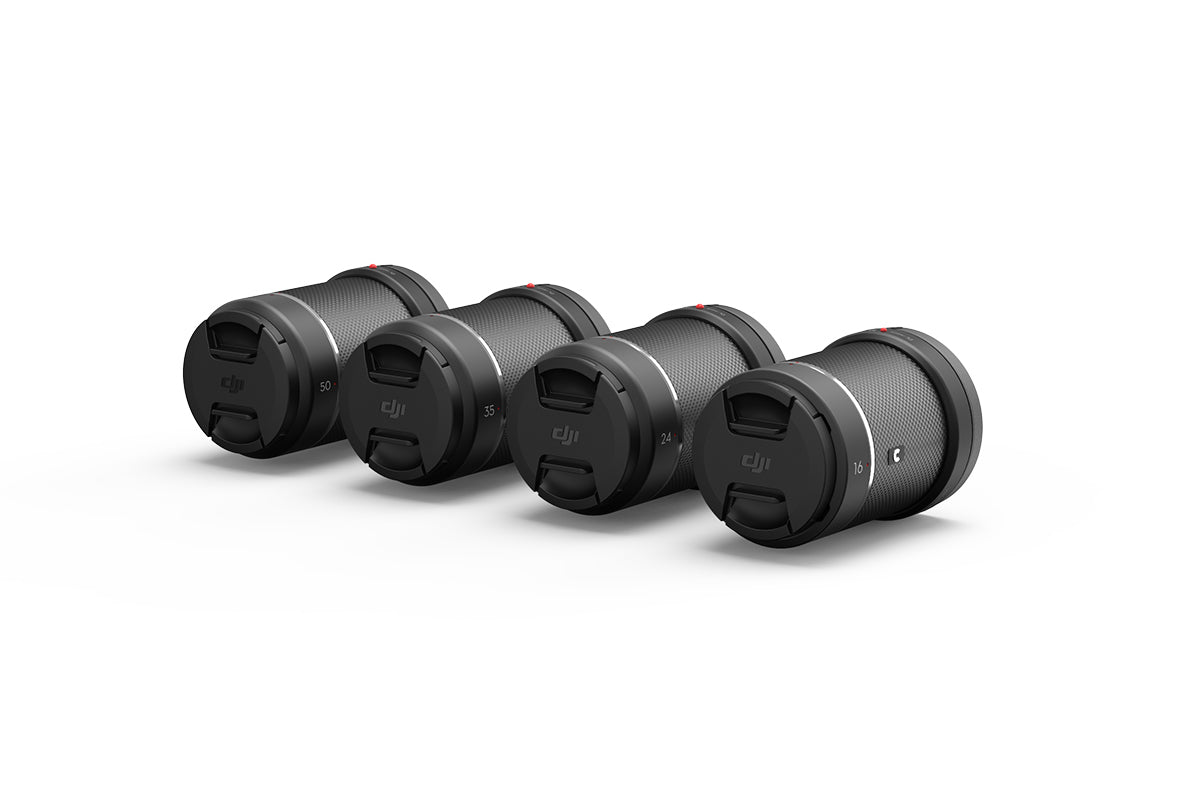

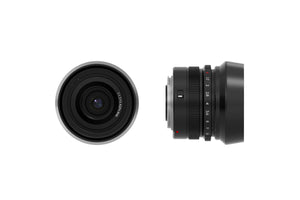

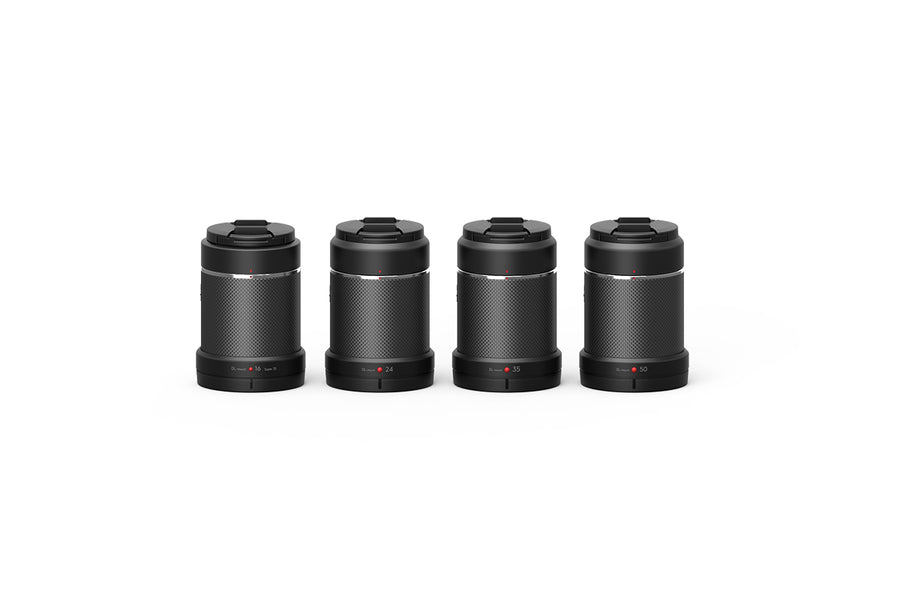

ARRAY OF COMPATIBLE LENSES
Since it uses a standard Micro 4/3 mount, the Zenmuse X5S now supports up to eight professional lenses* with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), providing more creative control over the final look of a shot.

 Zenmuse X5S - Hollywood grade Video

HOLLYWOOD-GRADE VIDEO
Using CineCore 2.0, the Zenmuse X5S records video at a maximum resolution of 5.2K/30fps in CinemaDNG 12bit1, 5.2K 30fps Apple ProRes 422 HQ and 4K 30fps Apple ProRes 4444 XQ (no alpha)2. Additional recording options include video in 4K/60fps using H.264 or oversampling video in 4K/30fps using H.264/H.265, both with a bitrate of 100Mbps. 1 2Additional licenses required

 Zenmuse X5S - Efficient Workflow

FAST, EFFICIENT WORKFLOWS
The DJI CINESSD card (PCIe3.0 NVMe SSD support) and a highly optimized FAT32/exFAT file system, allows Zenmuse X5S footage to be transferred directly through the DJI CINESSD STATION card reader to a computer at high speeds without any additional software. Footage also supports the DIT standard. CinemaDNG or Apple ProRes workflows can be used for post-processing.

 Zenmuse X5S - Burst Mode

LOSSLESS IN-VIDEO SINGLE AND BURST PHOTO CAPTURE
Using only the Micro SD card, 20.8MP stills can be captured at 14fps in Burst Mode in JPEG+DNG. Using the DJI CINESSD opens up 20fps continuous DNG Burst Mode with a maximum image resolution of 20.8 megapixels. Stills can also be taken during video recording without interruption.

Zenmuse X5S - Enhanced Camera Stabilization

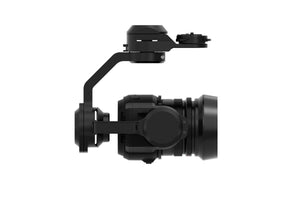

ENHANCED CAMERA STABILIZATION
Stabilizing the Zenmuse X5S is a highly optimized 3-axis gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings — as is common with many gimbals — the Zenmuse X5S uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using three damping balls and a lightweight damping board, creating seamlessly smooth video. 360° rotation remains possible through gimbal rotation and smooth aircraft yaw. Stable, smooth footage[1] can be captured even when using a 90mm[2] lens.

[1] Equivalent to 35mm camera’s standard focal length
[2] Exposure time must be equal to or longer than 1/60 in GPS mode

Zenmuse X5S - Long Range Control

LONG-RANGE CAMERA AND FOCUS CONTROL
Take control over every camera setting from afar, including focus, aperture, and format, directly in the DJI GO app. Precision control also extends to focus, with DJI GO and the optional DJI Focus, offering focus control across the entire transmission range. Using DJI Focus, no additional cables or motors are needed and new Lightbridge technology sends all signals as far as 4.3mi (7km) away*.

* Unobstructed, free of interference, when FCC compliant.





General
Name Zenmuse X5S
Dimensions 140×98×132 mm
Weight 461 g
Camera
Supported Lens DJI MFT 15mm/1.7 ASPH (With Balancing Ring and Lens Hood)
Panasonic Lumix 15mm/1.7 (With Balancing Ring and Lens Hood)
Panasonic Lumix 14-42mm/3.5-5.6 HD
Olympus M.Zuiko 12mm/2.0 (With Balancing Ring)
Olympus M.Zuiko 17mm/1.8 (With Balancing Ring)
Olympus M.Zuiko 25mm/1.8
Olympus M.Zuiko 45mm/1.8
Olympus M.Zuiko 9-18mm/4.0-5.6
Sensor CMOS, 4/3”
Effective Pixels: 20.8MP
FOV 72° (with DJI MFT 15mm/1.7 ASPH )
Photo Resolutions 4:3, 5280×3956
16:9, 5280×2970
Video Resolutions H.264
C4K: 4096×2160
23.976/24/25/29.97/47.95/50/59.94p @100Mbps
4K: 3840×2160
23.976/24/25/29.97/47.95/50/59.94p @100Mbps
4K: 3840×1572
23.976/24/25/29.97p @100Mbps
2.7K: 2720×1530 23.976/24/25/29.97p @80Mbps
47.95/50/59.94p @100Mbps
FHD: 1920×1080
23.976/24/25/29.97p @60Mbps
47.95/50/59.94p @80Mbps
119.88p @100Mbps
H.265
C4K: 4096×2160
23.976/24/25/29.97p @100Mbps
4K: 3840×2160
23.976/24/25/29.97p @100Mbps
4K: 3840×1572
23.976/24/25/29.97p @100Mbps
2.7K: 2720×1530
23.976/24/25/29.97p @65Mbps
47.95/50/59.94p @80Mbps
FHD: 1920×1080
23.976/24/25/29.97p @50Mbps
47.95/50/59.94p @65Mbps
119.88p @100Mbps
C-DNG RAW
5.2K: 5280×2972
23.976/24/25/29.97p, up to 4.2Gbps
4K: 4096×2160, 3840×2160
23.976/24/25/29.97p, up to 2.4Gbps
4K: 4096×2160, 3840×2160
50/59.94p, up to 4.0Gbps
Apple ProRes
5.2K: 5280×2160
23.976/24/25/29.97p, 422 HQ @1.3Gbps
4K: 3840×2160
23.976/24/25/29.97p, 422 HQ @900Mbps
4K: 3840×2160
23.976/24/25/29.97p, 4444 XQ @2.0Gbps
Photo Formats DNG,JPEG,DNG+JEPG
Video Formats RAW,ProRes,MOV,MP4
Operation Modes Capture, Record, Playback
Still Photography Modes Micro SD: Single shot, Burst Shooting:
3/5/7/10/14 frames, Auto Exposure Bracketing, 3/5 bracketed frames at 0.7EV bias, Timelapse
SSD: RAW Burst Shooting:
3/5/7/10/14/20/∞ frames
Exposure Mode Auto, Manual, Shutter, Aperture
Exposure Compensation ±3.0 (1/3 increments)
Metering Mode Center-weighted metering,
Spot metering (area option 12x8)
AE Lock Supported
Electronic Shutter Speed 8-1/8000s
White Balance Auto, Sunny, Cloudy, Incandescent,
Neon Custom (2000K–10000K)
ISO Range 100 – 6400 (Video)
100 – 25600 (Stills)
Video Captions Supported
Anti-Flicker Auto, 50Hz, 60Hz
PAL/NTSC Supported
Gimbal
Angular Vibration Range ±0.01°
Mount Detachable
Controllable Range Tilt: +30°to -90°, Pan: ±320°
Mechanical Range Tilt: +50°to -140°, Pan: ±330°, Roll: +90° to +30°
Max Controllable Speed Tilt: 90°/s, Pan: 90°/s
Environmental
Operating Temperature 14°–104°F (-10 to 40℃)
Storage Temperature -4°–140°F (-20 to 60℃)





Zenmuse X5S - In the Box
