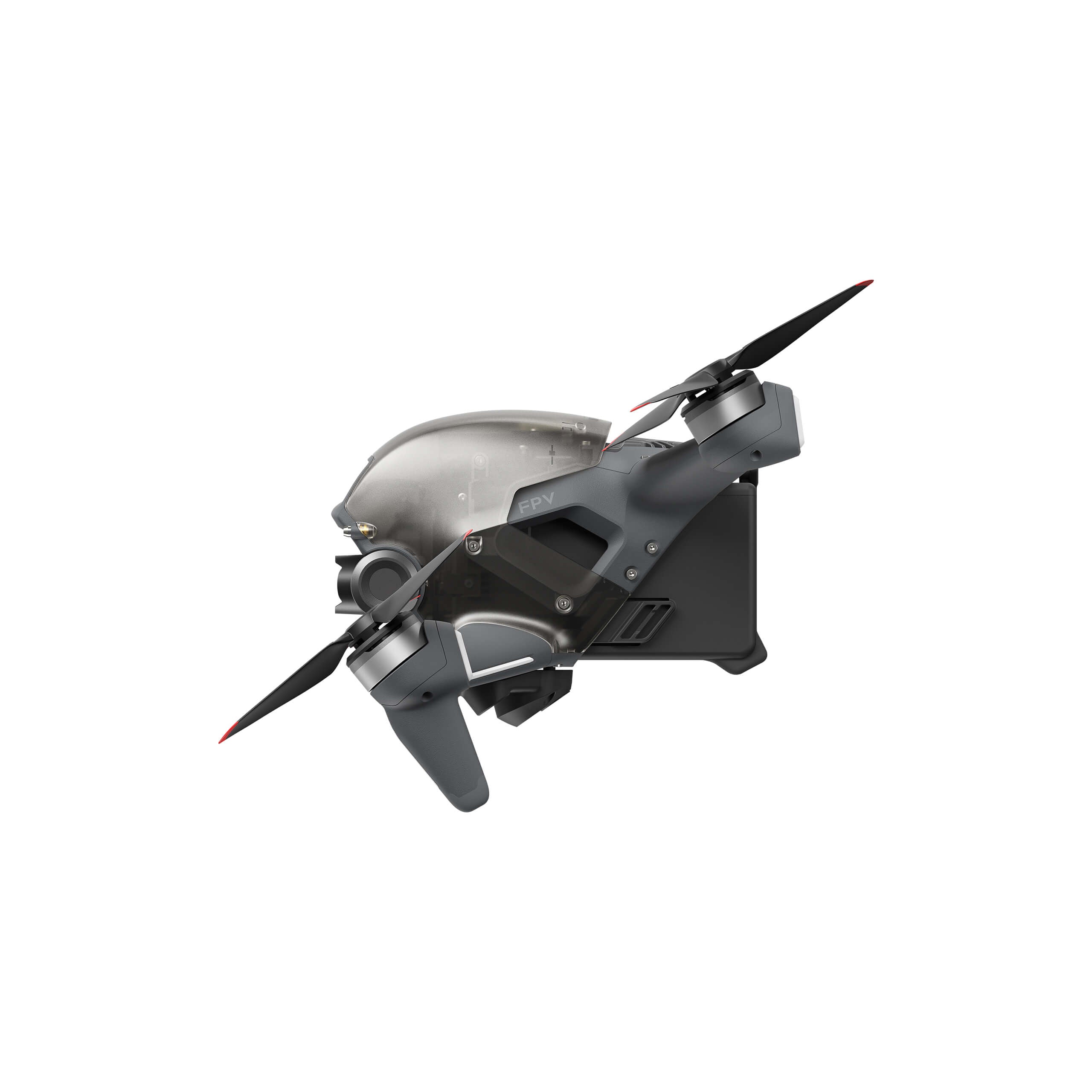

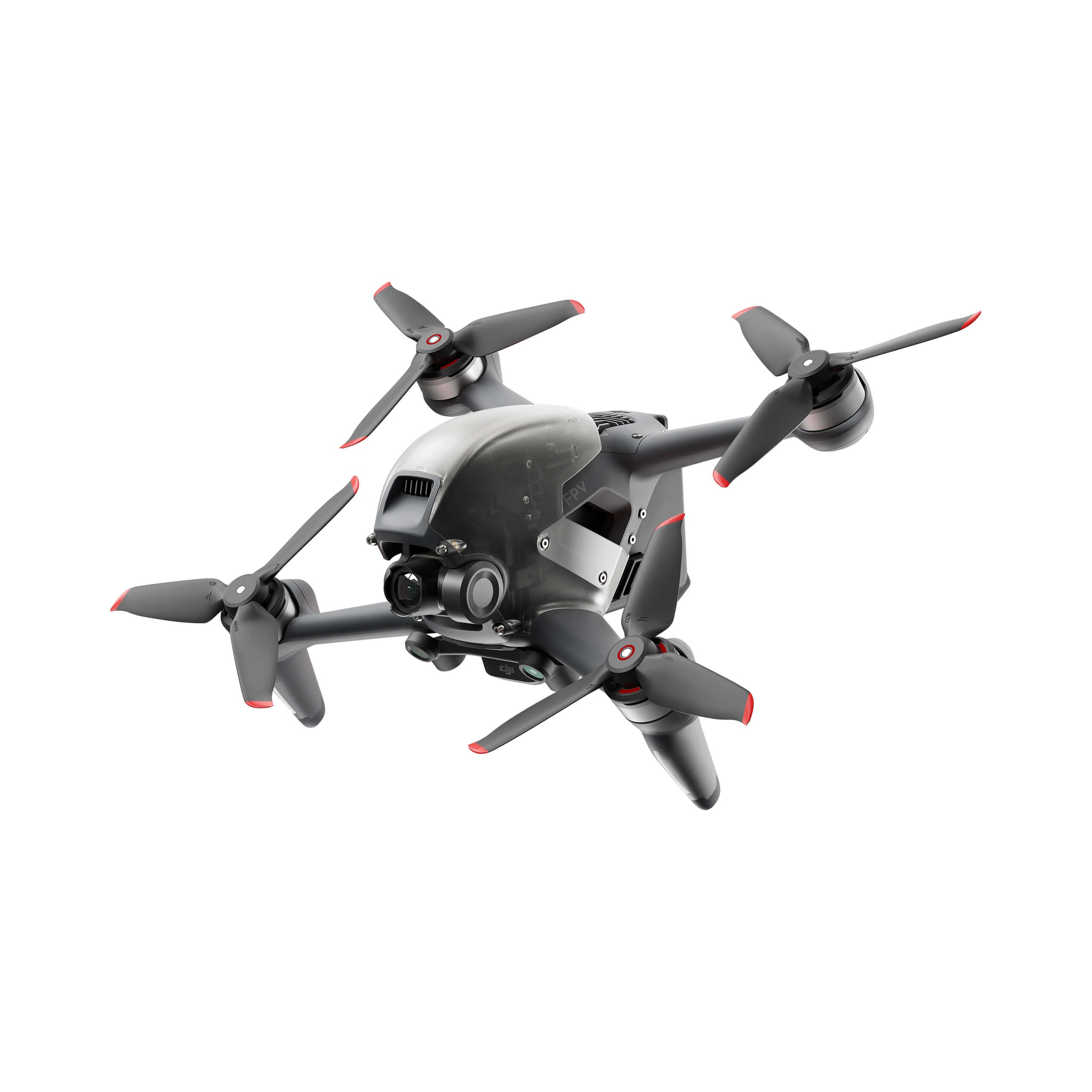

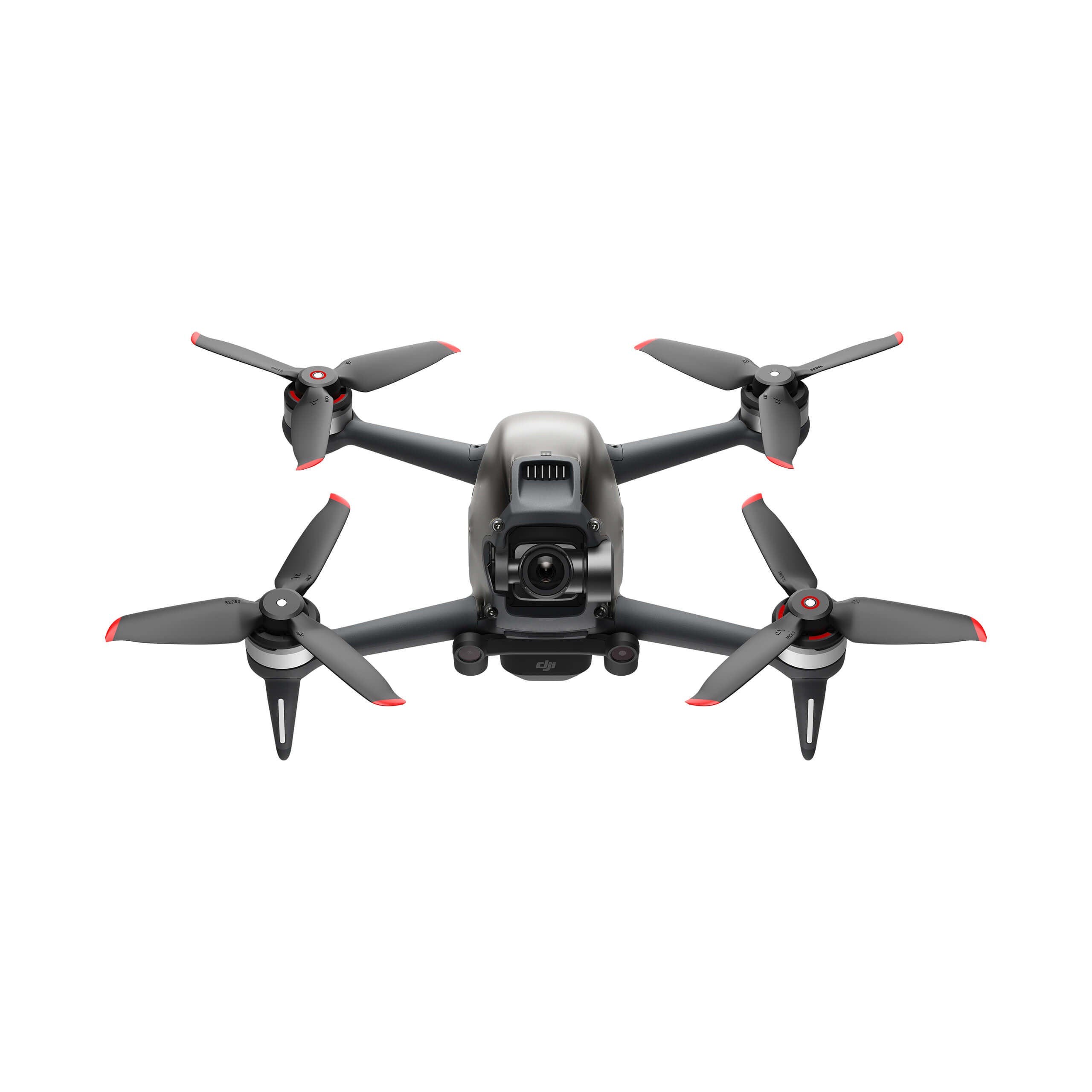

DJI FPV Drone Combo

DJI FPV Drone Combo

IN STOCK


DJI FPV ACCESORIES






  • Immersive Flight Experience[1]
  • 4K/60fps Super-Wide 150° FOV[2]
  • 10km HD Low-Latency Video Transmission[3]
  • Brand-New S Mode
  • Emergency Brake and Hover[4]



 Sensor

1/2.3” CMOS
Effective pixels: 12 million
Lens
FOV: 150°
35mm Format Equivalent: 14.66 mm
Aperture: f/2.8
Focus Mode: Fixed Focus
Focus Range: 0.6 m to ∞
ISO
100-12800 Shutter Speed
1/50-1/8000 s Still Photography Modes
Single shot Max Image Size
3840×2160 Photo Format
JPEG Video Resolution
4K: 3840×2160 at 50/60fps
FHD: 1920×1080 at 50/60/100/120fps
Video Formats
MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)
Max Video Bitrate
120 Mbps
Color Profile
Standard, D-Cinelike
RockSteady EIS
Available
Distortion Correction
Available
Supported File Formats
exFAT (recommended)
FAT32
Gimbal
Mechanical Range
Tilt: -65° to 70°
Controllable Range
Tilt: -50° to 58°
Stabilization
Single-axis (tilt), electronic roll axis
Max Control Speed
60°/s
Angular Vibration Range
±0.01° (N mode) Electronic Roll Axis
Available (can stabilize footage when the aircraft is tilted at angles of up to 10°)
Aircraft
Takeoff Weight
Approx. 795 g
Dimensions
255×312×127 mm (with propellers)
                                          178×232×127 mm (without propellers)
                                          Diagonal Distance
                                          245 mm
                                          Max Ascent Speed
                                          M mode: No limit
                                          S mode: 15 m/s
                                          N mode: 8 m/s
                                          Max Descent Speed
                                          M mode: No limit
                                          S mode: 10 m/s
                                          N mode: 5 m/s
                                          Max Speed
                                          140 kph; M mode: 39 m/s (27 m/s in Mainland China)
                                          S mode: 27 m/s
                                          N mode: 15 m/s
                                          Max Acceleration
                                          0-100 kph: 2 s (in ideal conditions while flying in M mode)
                                          Max Service Ceiling Above Sea Level
                                          6,000 m
                                          Max Flight Time
                                          Approx. 20 mins (measured while flying at 40 kph in windless conditions)
                                          Max Hover Time
                                          Approx. 16 mins (measured when flying in windless conditions)
                                          Max Flight Distance
                                          16.8 km (measured while flying in windless conditions)
                                          Max Wind Speed Resistance
                                          39-49 kph (25-31 mph)
                                          Operating Temperature
                                          -10° to 40° C (14° to 104° F)
                                          Transmitter Power (EIRP)
                                          2.400-2.4835 GHz
                                          FCC: ≤ 31.5dBm
                                          CE: ≤ 20 dBm
                                          SRRC: ≤ 20 dBm
                                          MIC: ≤ 20 dBm

                                          5.725-5.850 Ghz
                                          FCC: ≤ 31.5 dBm
                                          CE: ≤ 14 dBm
                                          SRRC: ≤ 25.5 dBm
                                          Number of Antennas
                                          Four
                                          GNSS
                                          GPS+GLONASS+GALILEO
                                          Hovering Accuracy Range
                                          Vertical:
                                          ±0.1 m (with Vision Positioning)
                                          ±0.5 m (with GPS positioning)

                                          Horizontal:
                                          ±0.3 m (with Vision Positioning)
                                          ±1.5 m (with GPS positioning)
                                          Supported SD Cards
                                          microSD (up to 256 GB)
                                          Internal Storage
                                          N/A
                                          Sensing System
                                          Forward
                                          Precision Measurement Range: 0.5-18 m
                                                                          Obstacle Sensing: Available in N mode only
                                                                          FOV: 56° (horizontal), 71° (vertical)
                                                                          Downward (dual vision sensors + ToF)
                                                                          ToF Effective Sensing Height: 10 m
                                                                          Hovering Range: 0.5-15 m
                                                                          Vision Sensor Hovering Range: 0.5-30 m
                                                                          Downward Auxillary Light
                                                                          Single LED
                                                                          Operating Environment
                                                                          Refers to non-reflective, discernible surfaces
                                                                          Diffuse reflectivity >20% (e.g. walls, trees, people)
                                                                          Adequate lighting conditions (lux >15 in normal indoor lighting conditions)
                                                                          Charger
                                                                          Input
                                                                          100-240 V, 50/60 Hz, 1.8 A
                                                                          Output
                                                                          Battery charging interface:
                                                                                  25.2 V ± 0.1 V
                                                                                  3.57 A ± 0.1 A (high current)
                                                                                  1 A ± 0.2 A (low current)

                                                                                  USB Port:
                                                                                  5V/2A (×2)
                                                                                  Rated Power
                                                                                  86 W
                                                                                  Intelligent Flight Battery
                                                                                  Battery Capacity
                                                                                  2000 mAh
                                                                                  Voltage
                                                                                  22.2 V
                                                                                  Max Charging Voltage
                                                                                  25.2 V
                                                                                  Battery Type
                                                                                  LiPo 6S
                                                                                  Energy
                                                                                  44.4 Wh@0.5C
                                                                                  Discharge Rate
                                                                                  Standard: 10C
                                                                                  Weight
                                                                                  295 g
                                                                                  Charging Temperature
                                                                                  5° to 40° C (41° to 104° F)
                                                                                  Max Charging Power
                                                                                  90 W
                                                                                  Video Transmission
                                                                                  Operating Frequency
                                                                                  2.400-2.4835 GHz
                                                                                                      5.725-5.850 GHz
                                                                                                      Communication Bandwidth
                                                                                                      40 MHz (Max.)
                                                                                                      Live View Mode
                                                                                                      Low-Latency Mode: 810p/120fps ≤ 28ms
                                                                                                      High-Quality Mode: 810p/60fps ≤ 40ms
                                                                                                      Max Video Bitrate
                                                                                                      50 Mbps
                                                                                                      Transmission Range
                                                                                                      10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
                                                                                                      Audio Transmission Support
                                                                                                      Yes

                                                                                                      DJI FPV Goggles V2

                                                                                                      Weight
                                                                                                      Approx. 420 g (headband and antennas included)
                                                                                                      Dimensions
                                                                                                      184×122×110 mm (antennas excluded)
                                                                                                                  202×126×110 mm (antennas included)
                                                                                                                  Screen Size
                                                                                                                  2-inches (×2)
                                                                                                                  Screen Refresh Rate
                                                                                                                  144 Hz Communication Frequency
                                                                                                                  2.400-2.4835 GHz
                                                                                                                  5.725-5.850 GHz
                                                                                                                  Transmitter Power (EIRP)
                                                                                                                  2.400-2.4835 GHz
                                                                                                                  FCC: ≤ 28.5 dBm
                                                                                                                  CE: ≤ 20 dBm
                                                                                                                  SRRC: ≤ 20 dBm
                                                                                                                  MIC: ≤ 20 dBm

                                                                                                                  5.725-5.850 GHz
                                                                                                                  FCC: ≤ 31.5 dBm
                                                                                                                  CE: ≤ 14 dBm
                                                                                                                  SRRC: ≤ 19 dBm
                                                                                                                  Communication Bandwidth
                                                                                                                  40 MHz (Max.)
                                                                                                                  Live View Mode
                                                                                                                  Low-Latency Mode: 810p/120fps ≤ 28ms*
                                                                                                                  High-Quality Mode: 810p/60fps ≤ 40ms*
                                                                                                                  * A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.
                                                                                                                  Max Video Bitrate
                                                                                                                  50 Mbps
                                                                                                                  Max Video Bitrate 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
                                                                                                                  Video Format
                                                                                                                  MP4 (Video format: H.264)
                                                                                                                  Supported Video and Audio Playback Formats
                                                                                                                  MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
                                                                                                                  Operating Temperature
                                                                                                                  0° to 40° C (32° to 104° F)
                                                                                                                  Power Input
                                                                                                                  Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries.
                                                                                                                  FOV
                                                                                                                  FOV: 30° to 54°; Image size: 50-100%
                                                                                                                  Interpupillary Distance Range
                                                                                                                  58-70 mm
                                                                                                                  Supported microSD Cards
                                                                                                                  microSD (up to 256 GB)
                                                                                                                  DJI FPV Goggles Battery
                                                                                                                  Capacity
                                                                                                                  1800 mAh
                                                                                                                  Voltage
                                                                                                                  9 V (Max.)
                                                                                                                  Type
                                                                                                                  LiPo 2S
                                                                                                                  Energy
                                                                                                                  18 Wh
                                                                                                                  Charging Temperature
                                                                                                                  0° to 45° C (32° to 113° F)
                                                                                                                  Max Charging Power
                                                                                                                  10 W
                                                                                                                  Battery Life
                                                                                                                  Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)

                                                                                                                  DJI FPV Remote Controller

                                                                                                                  Operating Frequency
                                                                                                                  2.400-2.4835 GHz
                                                                                                                  5.725-5.850 GHz
                                                                                                                  Transmitter Power (EIRP)
                                                                                                                  2.400-2.4835 GHz
                                                                                                                  FCC: ≤ 28.5 dBm
                                                                                                                  CE: ≤ 20 dBm
                                                                                                                  SRRC: ≤ 20 dBm
                                                                                                                  MIC: ≤ 20 dBm

                                                                                                                  5.725-5.850 GHz
                                                                                                                  FCC: ≤ 31.5 dBm
                                                                                                                  CE: ≤ 14 dBm
                                                                                                                  SRRC: ≤ 19 dBm
                                                                                                                  Max. Transmission Distance
                                                                                                                  10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
                                                                                                                  Gimbal Dimensions
                                                                                                                  190×140×51 mm
                                                                                                                  Weight
                                                                                                                  346 g
                                                                                                                  Battery Life
                                                                                                                  Approx. 9 hours
                                                                                                                  Charging Time
                                                                                                                  2.5 hours

                                                                                                                  Motion Controller

                                                                                                                  Model
                                                                                                                  FC7BMC
                                                                                                                  Weight
                                                                                                                  167 g
                                                                                                                  Operating Frequency Range
                                                                                                                  2.400-2.4835 GHz; 5.725-5.850 GHz
                                                                                                                  Max Transmission Distance (unobstructed, free of interference)
                                                                                                                  10 km (FCC), 6 km (CE/SRRC/MIC)
                                                                                                                  Transmitter Power (EIRP)
                                                                                                                  2.4 GHz: ≤28.5 dBm (FCC), ≤20 dBm (CE/ SRRC/MIC)
                                                                                                                  5.8 GHz: ≤31.5 dBm (FCC), ≤19 dBm (SRRC), ≤14
                                                                                                                  dBm (CE)
                                                                                                                  Operating Temperature Range
                                                                                                                  -10° to 40° C (14° to 104° F)
                                                                                                                  Battery Life
                                                                                                                  300 minutes
                                                                                                                  microSD card
                                                                                                                  Supported microSD cards
                                                                                                                  Max 256 GBUHS-I Speed Grade 3
                                                                                                                  Recommended microSD cards
                                                                                                                  SanDisk High Endurance U3 V30 64GB microSDXC
                                                                                                                  SanDisk Extreme PRO U3 V30 A2 64GB microSDXC
                                                                                                                  SanDisk Extreme U3 V30 A2 64GB microSDXC
                                                                                                                  SanDisk Extreme U3 V30 A2 128GB microSDXC
                                                                                                                  SanDisk Extreme U3 V30 A2 256GB microSDXC
                                                                                                                  Lexar 667x V30 128GB microSDXC
                                                                                                                  Lexar High Endurance 128GB U3 V30 microSDXC
                                                                                                                  Samsung EVO U3 (Yellow) 64GB microSDXC
                                                                                                                  Samsung EVO Plus U3 (Red) 64GB microSDXC
                                                                                                                  Samsung EVO Plus U3 256GB microSDXC
                                                                                                                  Netac 256GB U3 A1 microSDXC

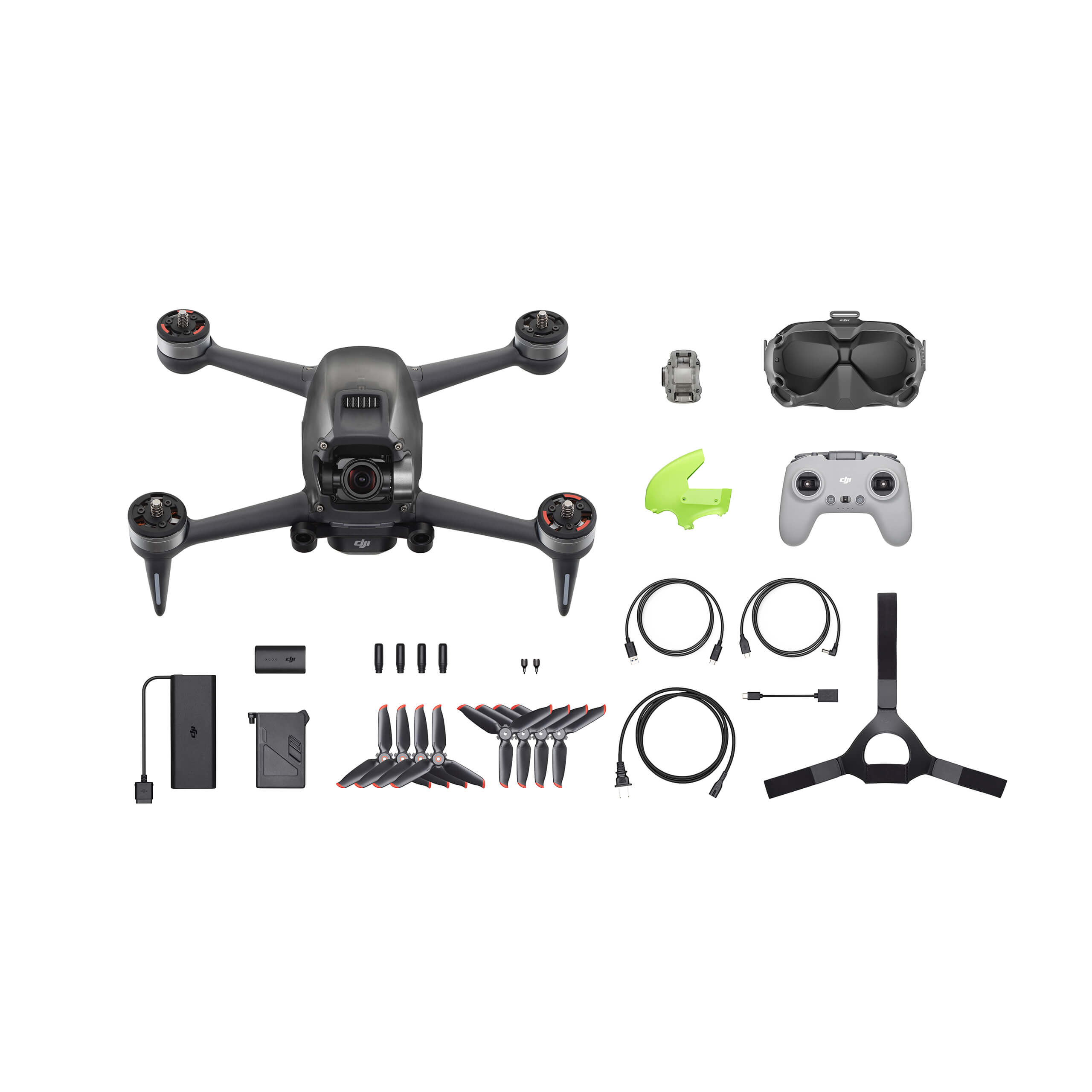

                                                                                                                                                                                      DJI FPV Drone × 1
                                                                                                                                                                                      DJI FPV Intelligent Flight Battery × 1

                                                                                                                                                                                      DJI FPV Propellers (Pair) × 4

                                                                                                                                                                                      DJI FPV Gimbal Protector × 1

                                                                                                                                                                                      DJI FPV Top Shell × 1

                                                                                                                                                                                      DJI FPV Remote Controller 2 × 1

                                                                                                                                                                                      Spare Control Sticks (Pair) × 1

                                                                                                                                                                                      DJI FPV Goggles V2 × 1

                                                                                                                                                                                      DJI FPV Goggles Antenna (Dual Band) × 4

                                                                                                                                                                                      DJI FPV Goggles Battery × 1

                                                                                                                                                                                      DJI FPV Goggles Power Cable (USB-C) × 1

                                                                                                                                                                                      DJI FPV Goggles Headband × 1

                                                                                                                                                                                      DJI FPV Goggles Foam Padding × 1

                                                                                                                                                                                      DJI FPV AC Power Adapter × 1

                                                                                                                                                                                      DJI FPV AC Power Cable × 1

                                                                                                                                                                                      USB-C Data Cable × 1

                                                                                                                                                                                      USB-C OTG Cable × 1









                                                                                                                                                                                       Compatibility:

                                                                                                                                                                                      DJI FPV Goggles V2

                                                                                                                                                                                      DJI FPV Remote Controller 2



                                                                                                                                                                                      1. Is DJI FPV waterproof?


                                                                                                                                                                                      No.



                                                                                                                                                                                      1. Is the DJI FPV aircraft compatible with other remote controllers?


                                                                                                                                                                                      Yes. DJI FPV is compatible with the DJI Motion Controller.



                                                                                                                                                                                      1. Is the DJI FPV aircraft compatible with other goggles?


                                                                                                                                                                                      Check the latest firmware updates for any new information on goggle compatibility.



                                                                                                                                                                                      1. Does the DJI FPV aircraft have an auxiliary light?


                                                                                                                                                                                      Yes. DJI FPV has a downward LED auxiliary light.



                                                                                                                                                                                      1. Does DJI FPV support GPS?


                                                                                                                                                                                      Yes. It uses GPS+GLONASS+GALILEO.



                                                                                                                                                                                      1. Can the DJI FPV aircraft hover?


                                                                                                                                                                                      N mode and S mode support auto-hovering through the use of the VIO+TOF+GPS system.



                                                                                                                                                                                      1. Does DJI FPV support obstacle detection and avoidance?


                                                                                                                                                                                      The DJI FPV aircraft comes with forward and downward vision sensors that can automatically detect objects and decelerate when flying in N mode. However, there is no automatic avoidance function. When obstacles are detected, the aircraft will slow down but will not stop completely unless controlled to do so by the pilot.



                                                                                                                                                                                      1. What photo resolution and format does DJI FPV support?


                                                                                                                                                                                      3840×2160 and JPEG.



                                                                                                                                                                                      1. What video formats are supported by DJI FPV?


                                                                                                                                                                                      MP4/MOV.



                                                                                                                                                                                      1. What FOV does the DJI FPV aircraft live view support?


                                                                                                                                                                                      A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.



                                                                                                                                                                                      1. Does the DJI FPV aircraft support D-Log or another neutral color format?


                                                                                                                                                                                      It supports D-Cinelike.



                                                                                                                                                                                      1. What video coding format does the DJI FPV aircraft support?


                                                                                                                                                                                      H.264 and H.265.



                                                                                                                                                                                      1. Does the DJI FPV aircraft support manual adjustment of the camera parameters?


                                                                                                                                                                                      Yes.



                                                                                                                                                                                      1. What are the DJI FPV aircraft's maximum supported video resolution and frame rate?


                                                                                                                                                                                      In High-quality mode, it supports up to 4K/60fps video. In Low-Latency mode, it supports up to 1080p/120fps video.



                                                                                                                                                                                      1. Can the DJI FPV aircraft directly connect to DJI Fly via smartphone?


                                                                                                                                                                                      No. You can connect it to a computer via USB-C cable to read the microSD card, or launch DJI Assistant 2 for firmware updates.



                                                                                                                                                                                      1. How long does it take for the DJI FPV aircraft to locate a GPS signal?


                                                                                                                                                                                      When DJI FPV is used frequently within a short amount of time and there is no signal interference, it takes about 20 seconds to search for and locate a GPS signal. If DJI FPV is not used frequently, this process may take longer. Users are not recommended to fly until there are a sufficient number of GPS satellites located.



                                                                                                                                                                                      1. What is the image transmission range of the DJI FPV aircraft?


                                                                                                                                                                                      DJI FPV has a 10km maximum transmission distance (FCC: 10 km, SRRC: 6 km, MIC: 6 km, CE: 6 km) when unobstructed, free of interference, and FCC-compliant.

                                                                                                                                                                                      Note: Maximum flight range specification is a proxy for radio link strength and resilience, not aircraft battery capability.
